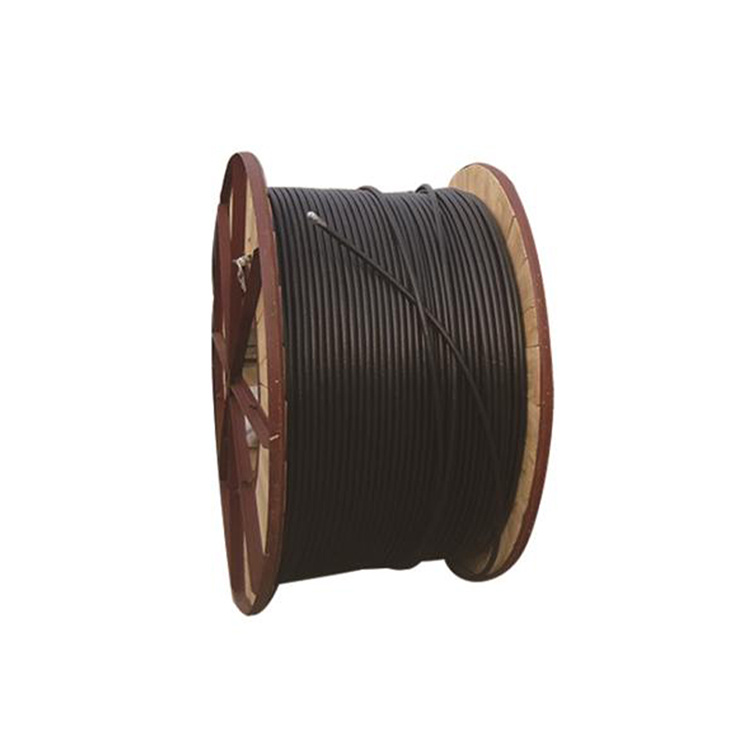

KYJV Cross-linked Polyethylene Insulated Polyvinyl Chloride Sheathed Control Cable

Product specifications, size, structure, insulation layer can be customized according to customer needs

Classification:

Product Consulting:

Product Description

Product Features:

Control cables are used in industrial and mining enterprises, energy transportation departments, and for control, monitoring circuits, and protection lines with an AC rated voltage below 450/750V.

The long-term allowable working temperature of the cable conductor is 70°C, and the laying temperature of the cable should not be lower than 0°C, with its allowable bending radius.

For hard structure cables laid in fixed locations, without armor or shielding, the minimum bending radius is 6 times the outer diameter of the cable; for those with armor or shielding, the minimum bending radius is 12 times the outer diameter of the cable.

For soft structure cables used in mobile locations, those with a shielding layer have a minimum bending radius of 6 times the outer diameter of the cable.

Product standards and specifications range:

Model	Cable nominal cross-section mm²
	0.5	0.75	1.0	1.5	2.5	4	6	10
	Number of cores
KVV, KVVP	-	2-61				2-14		2-10
KVVP2, KVVP3	-	4-61				4-14		4-10
KVV22	-	7-61		4-61		4-14		4-10
KVVP2-22	-	7-61		4-61		4-14		4-10
KVV32	-	19-61		7-61		4-14		4-10
KVVR	2-61					-		-
KVVRP	2-61			2-48		-		-
Note: Recommended number of cores are 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, and 61.

Model	KYJV	Specification	0.5-10mm²
Length	Custom	Rated Voltage	450/750V
Color	Black	Standards	GB/T 9330-2020
Usage	Fixed installation in industries such as metallurgy, electricity, and construction indoors.
